Xtool X100 PAD3 Vs X100 PAD2 Pro IMMO & ODO programmer
Being the upgrade version of Xtool X100 PAD2 Pro, Xtool X100 PAD3 (same as X100 PAD Elite) comes with more advanced hardware(1.8GHz, 1024•768 resolution, USB3.0, 10000mAh battery) , with clearer UI, VAG 4th 5th IMMO key programming works, Toyota Smart Key All Keys Lost programming works, access to all system to do full-functional diagnosis, adds 5 more service reset functions etc.
Being the upgrade version of Xtool X100 PAD2 Pro, Xtool X100 PAD3 (same as X100 PAD Elite) comes with more advanced hardware(1.8GHz, 1024•768 resolution, USB3.0, 10000mAh battery) , with clearer UI, VAG 4th 5th IMMO key programming works, Toyota Smart Key All Keys Lost programming works, access to all system to do full-functional diagnosis, adds 5 more service reset functions etc.
| Item | Xtool X100 PAD3 | Xtool X100 PAD2 Pro |
| Image |  |
 |
| Brand | Xtool | Xtool |
| Release year | 2020 year | 2016 year |
| Hardware | Operating system: Android Processor: quad core processor 1.8GHz Memory: 2G RAM, 64G ROM Display / touch screen: 1024•768 resolution, 8 inch LED Compatible touch screen Camera: rear camera, 8 million pixels, with flash autofocus. Sensor: gravity sensor Audio input / output: microphone, 4 band 3.5 millimeter stereo. Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface. Battery: 10000mAh 3.7V lithium polymer battery Input voltage: +9~+36VDC, compatible with 12V and 24V voltage system |
Wi-Fi：WIFI 2.4Ghz Memory：2GB RAM，32GB Flash Sensors：Gravity Sensor, Light Sensor Power Consumption：29.6W CPU：Quad Core, 1.6 GHz Operating System：Android 4.4.4 Bluetooth：100 Meters Display：8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution Battery：4000mAh, 7.4V Dimension：(L*W*H): 240*177*30mm Power Voltage：12V |
| UI | Much more clearer (the car brand logo is blue and the background is white) |
The car logo is white and the background is black |
| Communication | USB 3.0, WIFI 2.4Ghz | USB,WIFI 2.4Ghz |
| Immobilization | Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc America: GM, Cadillac, Buick, Chrysler, Ford etc China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc. |
America:Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford Asia:Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi,Nissan, Ssangyong, Subaru, Suzuki, Toyota China：BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery Europe:Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot,Porsche, Renault, Romeo, Seat, Skoda, Smart, VW |
| VAG 4th 5th IMMO | yes, when working together with KC100 adapter that comes in the package. | yes, when working together with KC100 adapter that comes in the package. |
| Toyota Smart Key All Keys Lost | Yes, when working together with the KS-1 Smart key emulator (need to buy additionally) | Yes, when working together with the KS-1 emulator (need to buy additionally) |
| Odometer adjustment | VW / Audi/ Seat/ Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More… | VW /Audi/Eat/Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More… |
| Common diagnosis | Yes, can access to all system of all car models from Europe, Asia, America, more at http://www.xtooltech.com/EN/ProductView/X100PADElite.html | Yes, can access to all system of all car models from Europe, Asia, America, more at http://www.xtooltech.com/EN/ProductView/X100PAD2PRO.html |

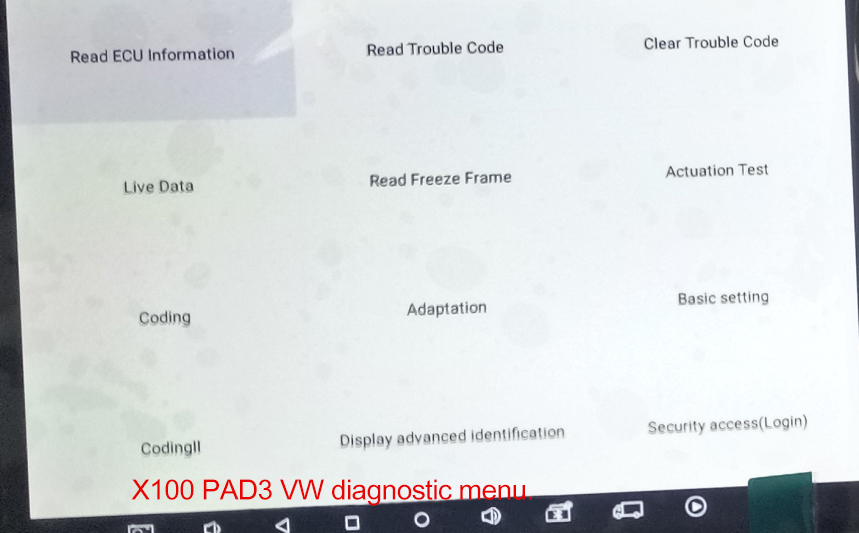

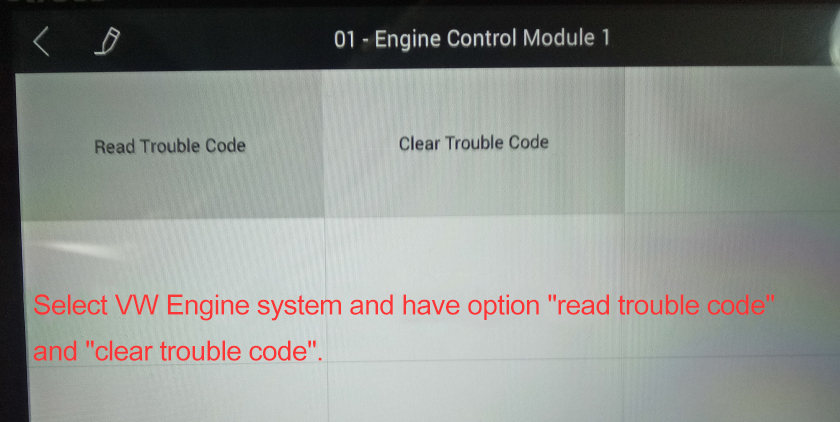

| Full-functional diagnosis | Yes. I.e VW diagnosis: basic OBD diagnosis + coding + adaptation  |
No. i.e VW diagnosis: basic OBD diagnosis, no coding, no adaptation  |

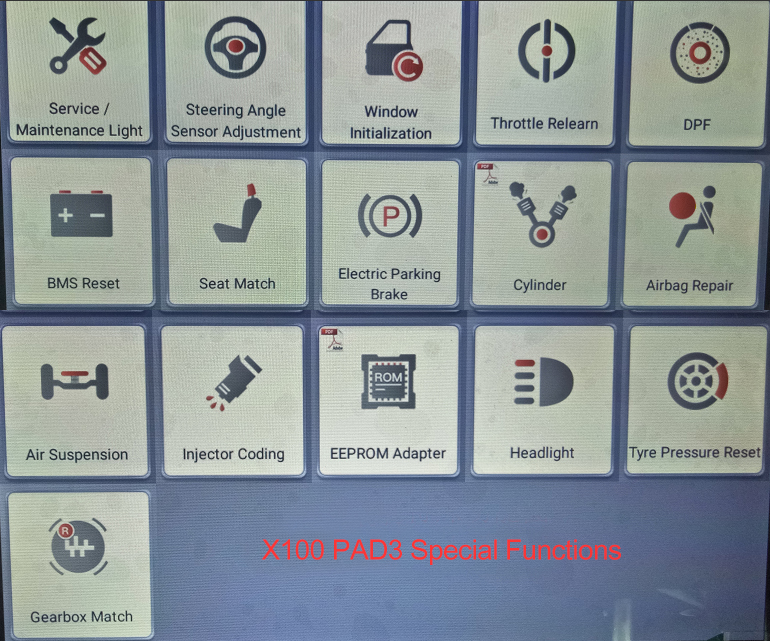

| Special Service | Service/Maintenance Light Steering angle sensor adjustment Window initialization Throttle relearn DPF BMS reset Seat match EPB (Electric Parking brake) Cylinder Airbag repair Air suspension Injector coding Eeprom adapter Headlight Tyre pressure reset Gearbox Match  |

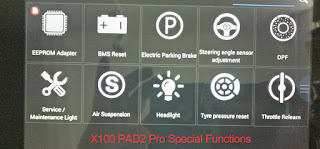

EEPROM adapter BMS reset Electric parking brake Steering angle sensor adjustment DPF Service / Maintenance light Air Suspension Headlight Tyre pressure reset Throttle relearn.  |
| Update | X100PAD3 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100PAD3 application and click UPDATE | One-click update via WIFI. |
| Language | Persian, Arabic, Indonesian, Greek | English, Spanish, French, Turkish, Indonesian, Thai, Portuguese |
| Package | Main Units: Mini B to USB 3.0 Type C Cable X100 PAD3 Cable KC100 EEPROM 2 Adapter Charger For tablet Charger US Adapter Charger EU Adapter Test Connectors: OBDII-16 HONDA-3 MAZADA-17R KIA20 HYUNDAI/KIA-10 DB15 Main Cable USB3.0 Main Cable (1m) Accessories: Certificate of quality Packing List User Manual Tool Case Carton |
Main Units: X-100 PAD2 USBTYPE-C and Mini_USB shift cable Charger for Tablet US Power Adapter KC100 EEPROM adapter EU Power Adapter Test Connectors: HYUNDAI/KIA-10 KIA-20 HONDA-3 DB15Male To VGA_Male USBTYPE-C OBD II-16 MAZDA-17R Accessories: Carton Packing List User Manual Certificate of Quality |
Good to know:
Xtool X100 PAD3 allows the user to add the local car makes from India, Malaysia as well as Renault, but the software version is 1- year older than that from the local dealer. If you need the other language, please provide with the serial number for free authorization.
Xtool X100 PAD2 Pro also allows the user to authorize the local car makes, but the software version is 1-year older than that from the local dealer, and the service is free.
Xtool X100 PAD3 Pros:
-All aluminum alloy & silicone: Covered with all aluminum alloy and silicone, X100 PAD Elite has more crash-resistant and durable hardware.
-Android Operating System: The Android-based touch screen tablet features powerful Quad core processor.
- Multi-color UI
X100 PAD Elite features simple & elegant appearance design, excellent workmanship and multi-color UI, high-definition display is clearly visible even in direct sunlight.
Conclusion:
Xtool X100 PAD3 tablet key programmer is much better than X100 PAD2 Pro in the aspects of hardware parameters, special functions, car models.
