Lifetime Free Update XTOOL InPlus IP508S Diagnostic Tool with 9 Reset Services ABS Bleeding Throttle Relearn Injector Coding Upgraded Ver. of IP508 Lifetime Free Update

Product Description

XTOOL InPlus IP508S Diagnostic Tool with 9 Reset Services

Top Reasons to get the XTOOL InPlus IP508S:

1. Support 5 System Diagnose: XTOOL Inplus IP508S supports entering the 5 systems of Engine, Transmission, SRS, EPB and ABS for diagnosis. Help you solve your vehicle's problems more accurately and quickly.

2: 9 Maintenance Functions: Oil Rest, TPMS Reset, SAS, EPB, BMS Reset, Injector Coding, DPF, ABS Bleeding, Throttle Relearn.

3. 8 In 1 Live Data Graph: Support selecting 8 pieces of data at the same time to form a data flow chart, which is convenient for you to understand the status of each module more intuitively.

4. Full OBDII Functions: Read/Clear Trouble Codes, Live Data, Read Freeze Frame, Component Test, Read ECU Information, On-Board Monitor Test, O2 Sensor Monitoring Test, I/M Readiness, EVAP System Test.

5. Auto VIN Scan: Automatically retrieve vehicle identification numbers for quick access to vehicle system diagnostics.

6. 14 Languages Supported: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Traditional Chinese (pls send us the serial number of the Inplus IP508S if you need to change the language)

7. Wide Coverage of Vehicles: XTOOL Inplus IP508S support 80+ car brands and 10000+ car models for diagnosis and reset.

8. Superior Firmware: Configuration: 5” Touchscreen + 2G+32G Memory + Android 10

9. life time free update +Remote Technical Support

ABS System Diagnosis

Retrieve the ABS code to tell you where the problem is and you can fix it.

SRS System Diagnosis

The airbag system consists of a collision sensor, a control module and the airbag itself. The diagnostic equipment can detect each electronic parameter to check its health status.

Engine System Diagnosis

Help detect engine ignition, fuel injection, air-fuel ratio and exhaust emissions in the engine system to improve vehicle performance, save energy and reduce exhaust emissions.

EPB System Diagnosis

If you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation

Transmission System Diagnosis

Read and clear the codes in the transmission system and view real-time data so that the transmission system output is optimally adapted to speed and load. Retrieve error information from automatic transmission (AT). Automatic transmission is a motor vehicle transmission that can automatically change the transmission ratio when the vehicle is moving, so that the driver does not need to shift manually.

9 Reset Function Make Repair Easy

👍 Oil Rest: Reset the Engine Oil Life System, which calculates the optimum oil life change interval based on the vehicle's driving conditions and climate. The oil life reminder must be reset each time the oil is changed so that the system can calculate when the next oil change is required.

👍 TPMS Reset: Tire Pressure Monitor System (TPMS) Reset allows you to quickly look up the tire sensor IDs from the vehicle ECU, as well as to perform TPMS replacement and reset procedures after tire sensors are replaced.

👍 SAS Reset : SAS reset supports recalibration of the steering angle sensor. After the calibration is successfully completed, the SAS fault memory will be automatically cleared.

👍 EPB Reset :the electronic parking brake system and brake pads, which also supports the brake pad replacement (retraction, release of the brake pump), G-sensor and body angle calibration.

👍 BMS Reset: The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

👍 Injector Coding: Write the identification code of the injector into the ECU so that the ECU can recognize and work normally.

👍 DPF: DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

👍 ABS Bleeding: After the gear learning is successful, the MIL will be closed. This function can complete the self-learning of the gearbox and improve the quality of shifting.

👍 Throttle Relearn: Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

8 in 1 Live Data Graph

Features with Live Data Stream Functionality Help Monitor and Prevent Vehicle Problems Before They Get Serious.
- XTOOL InPlus IP508S features with Real-timedata function, which can be viewed as text or in graph form. This gives you a complete picture of the vehicle’s health and potential issues than what you’d get from a basic OBD2 code reader.

Live data plots for up to Eight Pids as a dynamic graph for more in-depth analysis, Include:

- Read and combine 8 separate data streams

- Graph 8 data streams

Live Data Record & Playback: Provides options to record and playback the live data stream to help you troubleshoot what’s going on with your vehicle.
Live Data Export to CSV File: Allows you to export the live data to csv file to look further into the live data in text.
These are the common parameters that you can monitor in real-time:

Engine Load as a percentage
Coolant Temperature
Engine Speed (RPM)
Fuel Consumption in real-time
Mass Air Flow
Oxygen Sensor and more

Full OBDII Functions:

► Read Trouble Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

► Clear Trouble Codes: Turns off Check Engine Light (MIL), clears codes and resets monitors

► Live Data: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

► Read Freeze Frame: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

► Read ECU Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

► Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

► On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

► O2 Sensor Monitoring Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

► I/M Readiness: Shows whether the various emissions-related systems on the vehicle

►EVAP System Test: Allow you to initiate a leak test for the vehicle’s EVAP system.

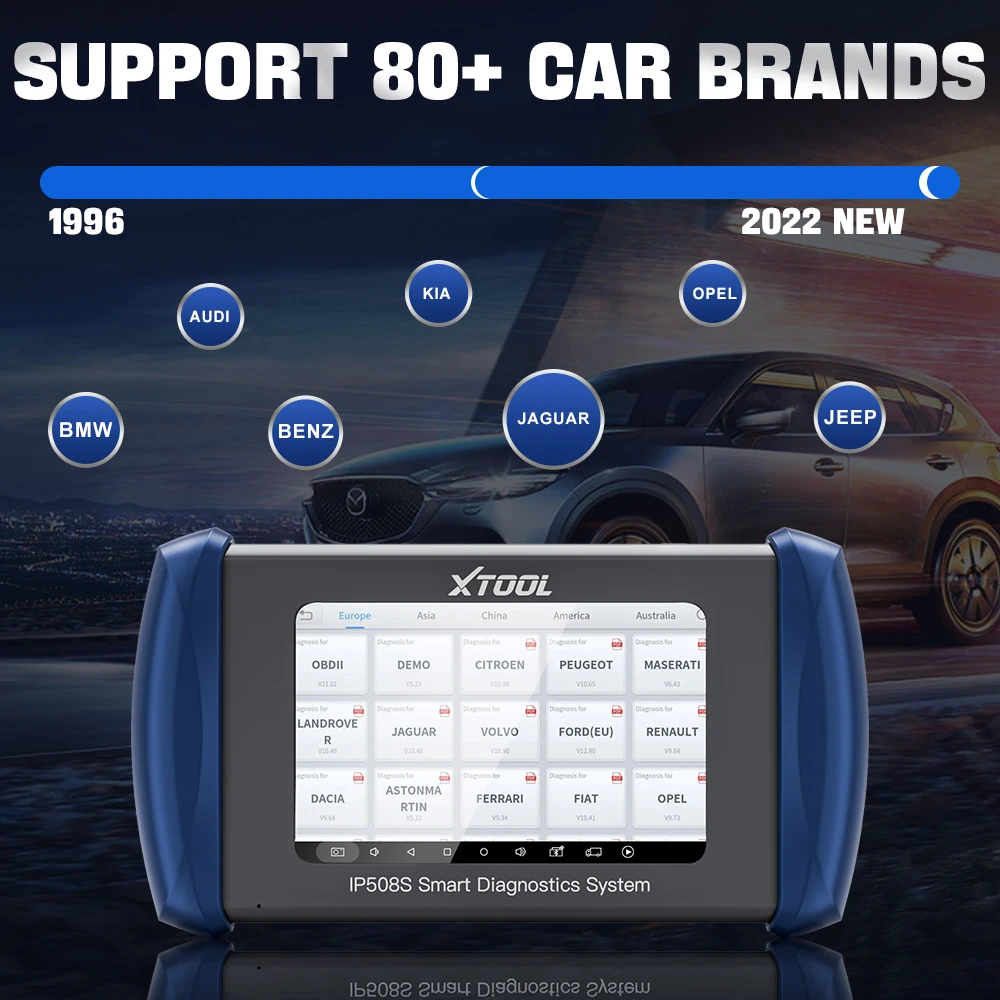

Support 80+ Car Brands

Inplus IP508S support more than 80 car brands to do diagnostic functions.

It can work for For ABARTH, For ACURA, For ROMEO, For ASTONMARTIN, For AUDI, For BMW, For MINI, For PROTON, For PORSCHE, For PERODUA, For BENZ, For SMART, For TRANSPORTER, For HONDA, For PEUGEOT, For DACIA, For DAIHATSU, For DAEWOO, For VW, For CVVW, For RENAULT, For RENAULTSAM, For HYUNDAI, For HYUNDAICV, For OPEL, For INFINITI, For LANDROVER, For FIAT, For BENTLEY, For LINCOLN, For BUICK, For SEAT, For DODGE, For BUGATTI, For NISSAN, For TOYOTA, For HUMMER, For HOLDEN, For JEEP, For JAGUAR, For CADILLAC, For CHRYSLER, For LAMBORGHINI, For LANCIA, For ROLLS, For LEXUS, For SUZUKI, For MAZDA For MASERATI, For MAYBACH, For AUSFORD, For EURFORD, For USAFORD, For KIA, For PONTIAC, For SAAB, For SCION, For MIT, For SSANGYONG, For SUBARU, For SKODA, For TLISUZU, For GM, For SATURN, For VOLVO, For VAUXHALL, For ISUZU, For CHEVROLET, For CITROEN, For FERRARI, For UAZ, For GAZ, For CHANGCHENG, For YQAUDI, For YQVW, For SHVW, For SQDTZY, For SQMG, For RONGWEI, For QIRUI, For JETOUR, For JIAO, For JILI, For HUACHEN, For JAC, For GMC, For BYD, For LIFAN.

Note: For the compatibility of each function is different, pls send us your car VIN to check the compatibility before place an order.

Report Print and Share

One-Click Updates with Wi-Fi & Lifetime Free Updates: XTOOL continuously updates the software and increases vehicle compatibility, allows you to update the software anytime when connected to Wi-Fi with free lifetime updates with just one click, never pay another penny to continue using it.

Report Sharing: Allows you to share your vehicle’s diagnostic report with your mechanic via email/BT for getting some advices before heading to the repair shop, saving you a trip to the repair shop.

Report Printing: It is useful for repair shop to show customers to explain the problem before and after the vehicle is fixed.R
Remote Assistance: When you have problems that cannot be solved, you can exchange data logging or obtain remote assistance with the team of XTOOL elite engineers (Please let us know your concerns before remote assistance).

IP508S Parameters

Operating system: ：Android 10
Memory:：2G(RAM) + 32G(ROM)
Display: ：5.0-inch touch screen with 480*854 resolution
Connectivity: ：Wired
Communication: ：BT 4.2, WIFI 2.4
Battery: ：3000mAh
Operating voltage: ：3.7V
Storage temperature: ：-40℃~60℃
Working temperature: ：0℃~40℃
Dimension (L*W*H): ：249*142*33.5mm

Xtool IP508S Package list:

Accessories
Color Carton
Packing List
Quick Guided
Main Units
F500 Tablet
Charger for Tablet
Charger US Adapter
Charger EU Adapter
Charger EU Adapter
Charger EN Adapter
Test Connectors
VGA to OBD II Main Cable
USB Cable
